Extreme High Performance MicroCoil^® Grille - 500K Cycles

Name: Extreme® 300 Series MicroCoil® Grille
Brand: Cookson Door

High Performance Security Grilles

Model Number: EPG324C, EPG324CB

The Extreme^® MicroCoil^® Grille takes space-saving to the extreme. Requiring just 14 inches of headroom, nearly 50% less than standard security grilles, it easily fits into spaces where traditional grilles simply can't. Despite its compact footprint, it delivers massive performance. The low-maintenance, springless design is rated for 500,000 open-and-close cycles and effortlessly handles high-traffic environments, with opening speeds up to 24 inches per second.

Powered by a quiet, efficient direct-drive operator and APEX Pro SmartController™, it's an ideal fit for busy parking structures. Its ultra-low profile makes it incredibly valuable for retrofits and upgrades in older garages, allowing you to add heavy-duty security while easily maintaining ADA 2010 clearance standards. It delivers the speed and durability you need, in a package designed to maximize your space and keep traffic flowing.

Need a Dealer Need an Architect Awards

Usage

The MicroCoil Grille is engineered to handle at least 500,00 cycles (open/closes) at speeds of up to 24" per second.

Standard Materials & Finishes

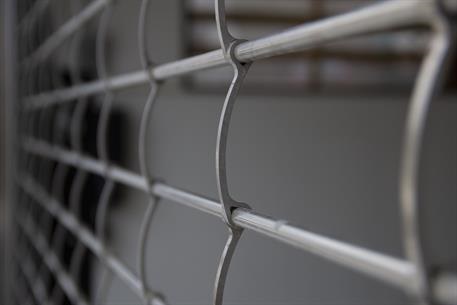

The MicroCoil® Grille offers an open-air design for increased visibility and ventilation. Curtains are assembled with a minimum solid 5/16 diameter, 5056 H32 aluminum alloy sleeved with horizontal aluminum or stainless steel tube spacers to separate vertical links on alternate rods with continuous end tube spacers. The vertical spacing is 2.5" to 3.7" on center. Vertical chains are solid 1/8" minimum stainless steel links, 1/4 inch wide, positioned by aluminum or stainless steel tube spacers on 9 inch centers. Nylon insert nuts are threaded on to the end of each rod to secure the chains.

Pattern options include:

Brick pattern (EPG324CB)

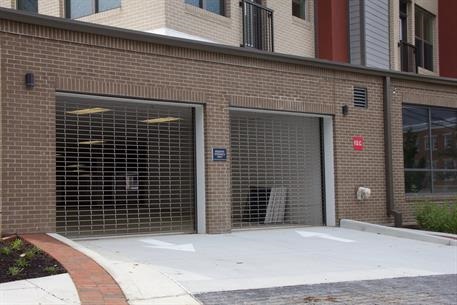

Straight pattern (EPG324C)

Curtains can come in the following finishes:

Mill
Clear Anodized
Stainless Steel

Extreme® Series Door Drive & Control System

This door features our first intelligent control panel - the APEX Pro SmartController™ . It features:

Plug-and-play connections between the motor, control panel, and standard sensors
LCD screen that walks user through:
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments

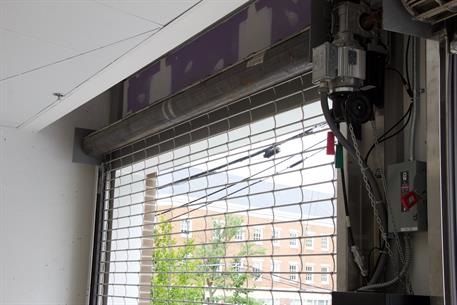

This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety.

Sizes

Our Extreme High Performance MicroCoil® Grille - 500K Cycle comes in the following standard height and width parameters:

If your maximum height is less than or equal to…	…your maximum width available is:
10’	26’ Stainless Steel Finish
14’	26’ Aluminum Finish

For openings that fall outside of the standard construction, please contact us.

Videos

Wind Load

Static Wind Load

Can be manufactured to withstand a static wind load of up to 40 psf. If wind load is not specified,the MicroCoil Grille will be manufactured to withstand a 20 ultimate wind load.

Operational Wind Load

Can be manufactured to withstand an operational wind load of up to 20psf.

Aesthetics

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Powder Coating Grilles

Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.

Learn More

Sloping Bottom Bar

CornellCookson's new low profile sloping bottom bar for the Extreme MicroCoil Grille and Extreme 300 Series High Performance Grille allows for a continuous uniform grille versus the traditional, bulkier pitch plates giving your opening a highly aesthetic, finished look.

Learn More

Performance Upgrades

Vibration Isolator

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
Learn More

LED Visual Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Safety and Protection

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Monitored Protection, Even at High Speeds

UL 325-2010 (NEMA 4X) compliant photo eye sensors allow for momentary contact operation – useful in parking garages and other high use openings. Interruption of the photo eye beam before the door fully closes causes the door to immediately halt downward travel and reverse direction to return to the fully open position.

SafetyGard Light Curtain Technology

The 6’ tall light curtain is installed within the guide and blends into the guide construction. If the grille is cycling and an object passes through the curtain beams the door will immediately halt downward travel and reverse direction to return to the open position.

Repairability

Link Repair Kit

If a single link gets damaged, you do not have to replace an entire section of the grille curtain. Simply make note of the number that is etched on the vertical link, order a link repair kit for the number link that is damaged and repair it in the field. It is a simple process to remove a damaged link and use the snap-on repair link - check out the full video tutorial.

Grille Section Replacement

If a whole section gets damaged, it's easy and hassle free to repair. - check out the full video tutorial.

SmartSync Diagnostic Tool

SmartSync Diagnostic Tool for APEX Controller

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller —streamlining your workflows and helping customers get back to business.

Specification Sheets

MicroCoil Grille Specification

BIM Objects

MicroCoil Grille Face of Wall Mount

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
MicroCoil Grille Drawing Generator
