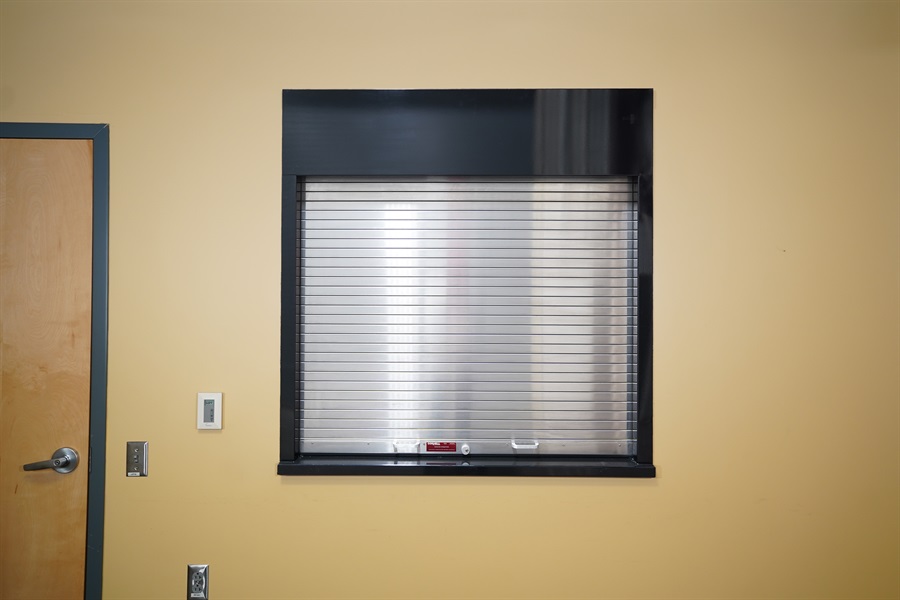

Rolling Counter Door Package UnitCounter Door
Model Number: ESC20 (with frame and integrated sill)
Easy Installation with a Flawless Appearance
Expertly manufactured as one pre-built piece, the Rolling Counter Door Package Unit makes installation as simple as sliding it into your predetermined wall opening and fastening.
This package unit features minimal transitions and seams with no exposed edges. The bottom bar construction no longer hangs below the fascia when in the fully opened position.
Rolling Counter Door Package Unit is available in 304 series stainless steel in #4 finish and powder coat in over 180 colors.
Technical Detail Information:
Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance
Maximum Rough Opening Width and Opening Height
Face of Wall: 11’6” x 5’
Between Jambs: 11’6” x 6’
Wall Thickness Requirements
Minimum: 4 ¾”
Our Rolling Counter Door Package Units are constructed for daily use.
Materials & Finishes
The Rolling Counter Door Package Unit comes standard in 304 series Stainless Steel in # 4 finish. It is also available with a Galvanex curtain in gray or tan, Staineless Steel ScreenGard curtain and SpectraSheild Powder Coating in more than 180 colors.
Hand-crank, push-up and motor options are available.
SpectraShield™ Powder Coating
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
ScreenGard Perforated Slats
Achieve the best of both worlds - ScreenGard perforated slats provide the security of a rolling service door and the visibility and ventilation of a grille. It is available in Galvanized Steel and Aluminum.
Finishes, Colors & OptionsFinishes Colors & Options Sheet
Powder Coat RAL Color Chart
Technical Data Sheets
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Counter Door Package Unit Generator
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
