Model Number: EPG324C & EPG324CB
High Performance Compact Security Grilles

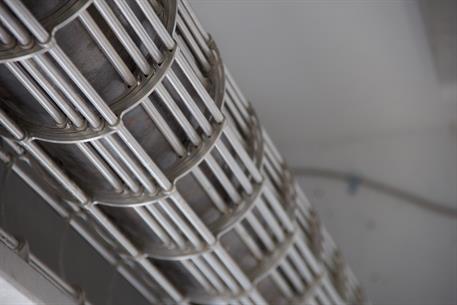

When you need security in an opening with limited vertical space, our Extreme High Performance MicroCoil Grille - 500K Cycles is the answer. Perfectly engineered to occupy the smallest amount of headroom on the market, our high performance compact grille not only coils in nearly 50% less room then other security grilles, but also gives you high performance. The MicroCoil Grille is engineered to handle at least 500,000 cycles (opens/closes) at speeds of up to 24” per second. But, with the MicroCoil Grille, higher speeds do not mean you get a loud and clunky security grille. Our low headroom parking security grille’s patented nested link system actually minimizes noise and vibrations - making it one of the quietest and smoothest coiling parking garage gates available today.
In addition, ADA compliance is made easy. With most parking garage openings averaging 9’6”, accommodating parking spaces for 8’2” handicap accessible vans as required by ADA has become a huge challenge. Taking up less than 14” coiled grille headroom space at it’s largest (and often even smaller), the MicroCoil security grille allows almost any parking facility the opportunity to install rolling security grilles and still be in compliance.
Our compact parking lot security gates are easy to install in new construction as well as retrofit into existing parking structures. All high performance compact parking grilles are paired with our advanced Apex SmartController control panel, so programming and setting limits for your parking entrance gate is simple and will accept all activation systems. Safety is addressed with light curtains plus photo eyes to prevent potential harm or injury from the parking security grille. All compact parking grilles feature long lasting stainless steel links and a direct drive operator that eliminates sprockets and chains to wear or replace. You can customize perimeter parts and the grille manufactured to your exact specifications.When a low headroom security solution is required, Cornell’s MicroCoil high performance compact grilles are the only security grilles that are low on space, but high on performance.
Standard Materials & Finishes
Pattern options include:
- Brick pattern (EPG324CB)
- Straight pattern (EPG324C)
- Clear Anodized
- Stainless Steel
Extreme® Series Door Drive & Control System
- Plug-and-play connections between the motor, control panel, and standard sensors
- LCD screen that walks user through:
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments
Our Extreme High Performance MicroCoil® Grille - 500K Cycles comes in the following standard height and width parameters:
If your maximum height is less than or equal to…
…your maximum width available is:
26’ Stainless Steel Finish
26’ Aluminum Finish
For openings that fall outside of the standard construction, please contact us
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More
Powder Coating Grilles
Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.Learn More
Sloping Bottom Bar
CornellCookson's new low profile sloping bottom bar for the Extreme MicroCoil Grille allows for a continuous uniform grille versus the traditional, bulkier pitch plates giving your opening a highly aesthetic, finished look.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Static Wind LoadCan be manufactured to withstand a static wind load of up to 40 psf. If wind load is not specified,the MicroCoil Grille will be manufactured to withstand a 20 ultimate wind load.
Operational Wind LoadCan be manufactured to withstand an operational wind load of up to 20psf.
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
A wide variety of locking options are available to meet your security needs.
Monitored Protection, Even at High SpeedsUL 325-2010 (NEMA 4X) compliant photo eye sensors allow for momentary contact operation – useful in parking garages and other high use openings. Interruption of the photo eye beam before the door fully closes causes the door to immediately halt downward travel and reverse direction to return to the fully open position.
SafetyGard Light Curtain TechnologyThe 6’ tall light curtain is installed within the guide and blends into the guide construction. If the grille is cycling and an object passes through the curtain beams the door will immediately halt downward travel and reverse direction to return to the open position.
Sloping or Irregular OpeningsOur special bottom bar designs can address these conditions.
Link Repair KitIf a single link gets damaged, you do not have to replace an entire section of the grille curtain. Simply make note of the number that is etched on the vertical link, order a link repair kit for the number link that is damaged and repair it in the field. It is a simple process to remove a damaged link and use the snap-on repair link - check out the full video tutorial.
Section ReplacementIf a whole section gets damaged, it's easy and hassle free to repair. - check out the full video tutorial.
