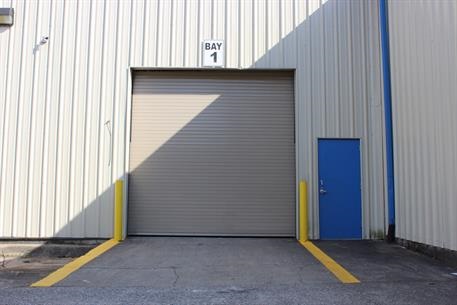

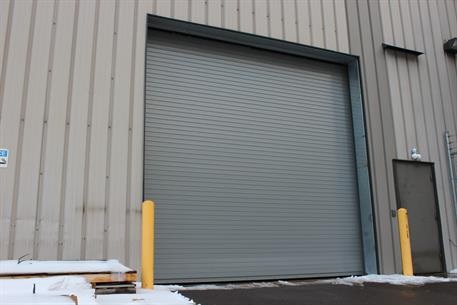

Extreme^® 300 Series High Performance Door

Name: Extreme® 300 Series High Performance Door
Brand: Cookson Door

High Performance Doors

Model Number: EPD 300 (service curtain), EPI 300 (insulated curtain)

Downtime from a broken door puts a damper on productivity. Worn-out springs are a leading cause of door failure. That’s why the Extreme® 300 Series Door was engineered with a springless design to deliver an incredible 300,000 maintenance-free cycles for maximum uptime in your busiest openings.

But it’s not just reliable; it performs at a higher speed. With opening speeds of up to 24 inches per second, it keeps your workflow moving without interruption. Intelligently connected, it features our APEX Pro SmartController™, making setup and operation a breeze. For climate-controlled areas, the insulated model significantly reduces air leakage, helping to lower energy costs.The Extreme 300 Series high-performance door delivers on precision and reliability in high-traffic, high-demand environments.

Looking for a higher cycle, but not a higher speed? Check out the TruCycle™ Service Door.
Need A Dealer Need Design Help

Extreme® Series Door Drive & Control System

This door features our first intelligent control panel - the APEX Pro SmartController™ . It features:

Plug-and-play connections between the motor, control panel, and standard sensors
LCD screen that walks user through:
- Initial door commissioning
- Electrically set limits
- Status and error messages
- Many common door adjustments

This door also comes with a compact direct drive operator with no roller chains or sprockets and an internal inertia brake for safety.

Sizes

Service Door Curtain:

Standard construction up to 30' wide, 20' high

Insulated Door Curtain:

Standard construction up to 24' wide, 20' high*

*Maximum allowable for height and width independently. Not all configurations available for combined maximum widths and heights. Please consult factory for more information.

For openings that fall outside of the standard construction, please contact us.

Usage

These doors are constructed for continuous use and are warrantied up to 300,000 cycles (or two years). Need more than 300,000 cycles, but less than a million? This door can be upgraded to offer 500,000 cycles with a 3 year warranty.

If you have an opening that only needs standard cycles, meaning less than 20 cycles per day, please consider our standard service or insulated product lines.

Standard Materials & Finishes

Extreme® 300 Series Performance Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:

Galvanized steel:
- Finished with a rust-inhibiting CycleShield™ finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
  - Friction and wear-resistant for high-cycle applications
  - Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
  - Recommended for exterior, corrosive and/or abrasive environments
  - Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.

300 series stainless steel with a #4 finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Videos

Performance Upgrades

Vibration Isolators

Vibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by 14% on doors and grilles with Vibration Isolators installed compared to doors and grilles without the system.
Learn More

LED Light Kit

The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Aesthetics

LED Visual Light Kit

Custom Slats

Slats with multiple small window size punched slots that create an open curtain design. Maintains a high level of security while allowing for ventilation and visibility.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Vision Windows

Improve aesthetics and visibility with one- or two-way windows incorporated in the curtain.

One-way vision windows allow occupants to only see out offering a perfect balance of natural light, enhanced security, and privacy.

Learn More

Safety and Protection Options

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

On-the-go Sensing Edge Repair Kit now available. Contact the Service Department at 1-800-390-8590

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Learn More

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

WeatherGard™

Include weather seals at the guides and bottom bar with an internal hood baffle at coil housing. Lintel mounted nylon brush seal also available.

Learn More

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

Windload Options

The Extreme 300 Series Door offers the below windload options:
- Static up to 50 PSF design windload.
- Operational up to 10 PSF maximum wind load.

SmartSync Diagnostic Tool

SmartSync Diagnostic Tool for APEX Controller

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller —streamlining your workflows and helping customers get back to business.

Specification Sheets

BIM Objects

300 Series Face of Wall

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Insulated Door Drawing Generator
Service Door Drawing Generator
