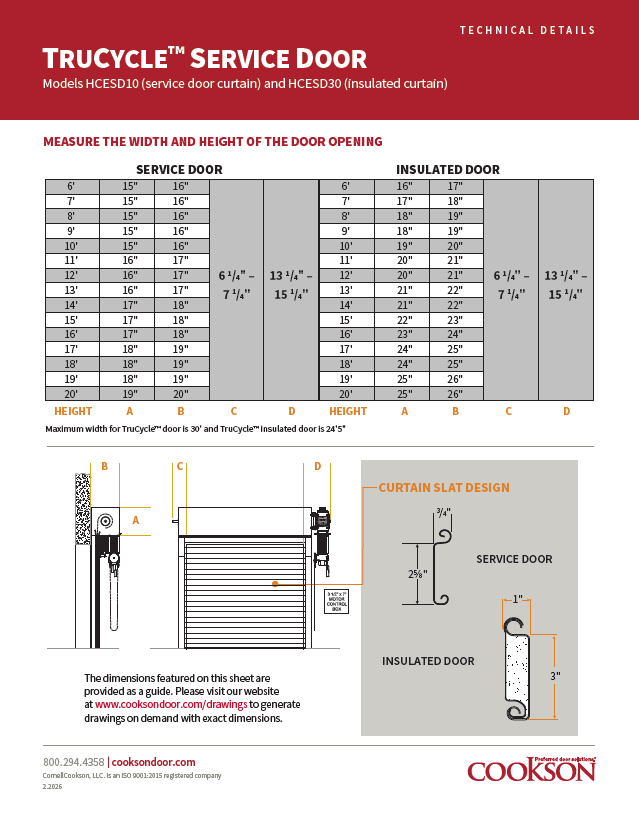

Model Number: HCESD10 & HCESD30

TruCycle^™ High-Cycle Rolling Door

When the pace of business is constant, the right door moves with it. The TruCycle^™ high-cycle door was developed for longevity and reliability, featuring a spring-free design that eliminates the most common cause of failure in standard coiling service doors. This ensures continuous operation in demanding environments, keeping your workflow on track.

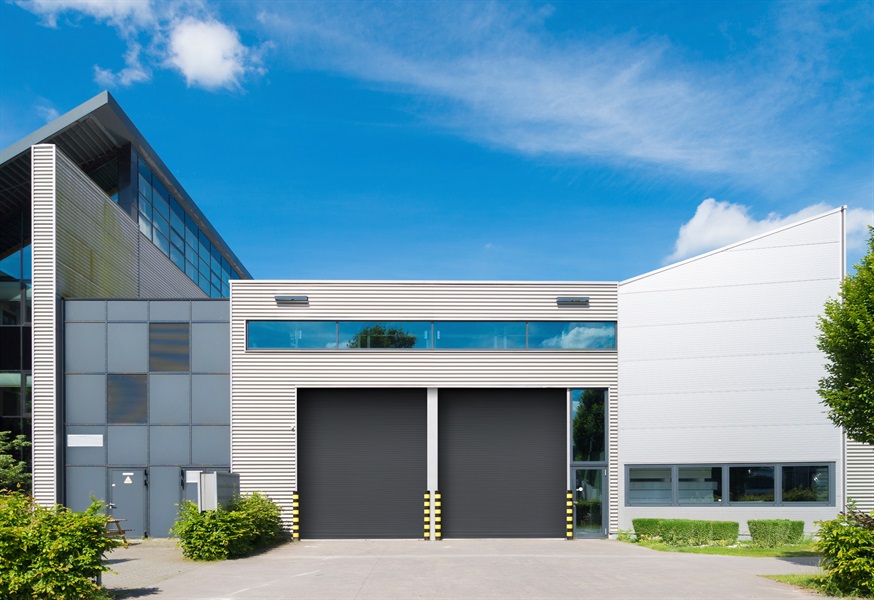

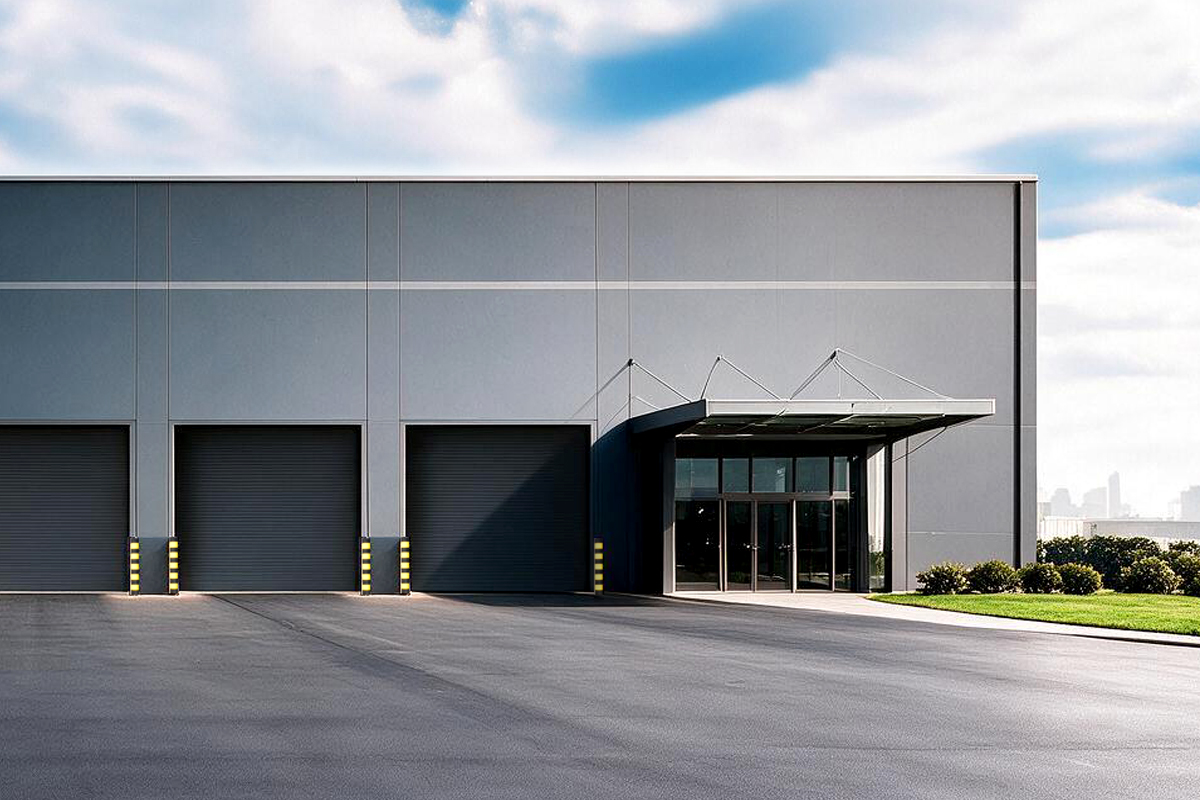

Our direct-drive motor and Variable Frequency Drive (VFD) provide smooth, quiet, and controlled motion. This advanced system protects the door from the stress of daily use, significantly reducing wear to safeguard your investment. It pairs with our smallest-ever APEX Core Controller for accessible diagnostics and simple ground-level commissioning. Proven as a heavy-duty rolling door in busy logistics centers and a dependable service door in secure parking structures, the TruCycle Door is built to perform.

Available in service and insulated models. The insulated model (HCESD30) comes standard with our Energy-Efficient Air Infiltration Package, reducing air infiltration by up to 94%* compared to standard doors. We stand behind our engineering so you can stay focused on your business. That’s why every model is backed by our 3-year/500,000-cycle warranty.

*Results based on third-party testing against a standard, non-insulated rolling door.

Need A Dealer Need Design Help

Usage

These doors are designed to handle heavy, continuous traffic.

To ensure consistent, cycle-to-cycle performance, every TruCycle Door includes a powerful 3-year or 500,000-cycle warranty, whichever comes first.

Standard Materials & Finishes

TruCycle Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:

Galvanized steel:
- Finished with a rust-inhibiting CycleShield® finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
  - Friction and wear-resistant for high-cycle applications
  - Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
  - Recommended for exterior, corrosive and/or abrasive environments
  - Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.

300 series stainless steel with a #4 finish

Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.

Operation

The TruCycle Door utilizes a direct-drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your door system. The operating system pairs with the APEX™ Core SmartController, putting reliable performance diagnostics at your fingertips.

Sizes

Max Width: 30'
Max Height: 20'

For openings that fall outside of the standard construction, please contact us.

Videos

Windload Options

Static & Operational Windload

Static up to 50 PSF design wind-load.
Operational up to 10 PSF maximum wind-load.

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Unique Features

APEX Core SmartController

This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.

Monitored Protection

Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.

120V Compatibility

The system is compatible with 120V input via an optional wall-mounted transformer. The required mounting space is 13.5" wide by 16.125" high.

SmartSync Diagnostic Tool

Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller—streamlining your workflows and helping customers get back to business.
