TruCycle™ Grille | High-Cycle Security Grille

High Performance

Model Number: HCESG10 & HCESG12

TruCycle^™ High-Cycle Security Grille

Reliable security, continuous access, and optimal airflow—delivered without compromise. The TruCycle™ Grille delivers high-cycle performance with smart efficiency, providing exceptional reliability without the added cost of high-speed operation. By designing a system without springs, we’ve eliminated the leading cause of service interruptions. This spring-free rolling security grille provides peace of mind, delivering reliable access while maintaining a secure, visible barrier.

Each cycle is guided by our direct-drive operator and motor-mounted Variable Frequency Drive (VFD). This technology prevents jarring movements, preserving the grille’s integrity and ensuring a long, low-maintenance service life. Paired with our APEX Core Controller, system diagnostics and commissioning are managed effortlessly at ground level.

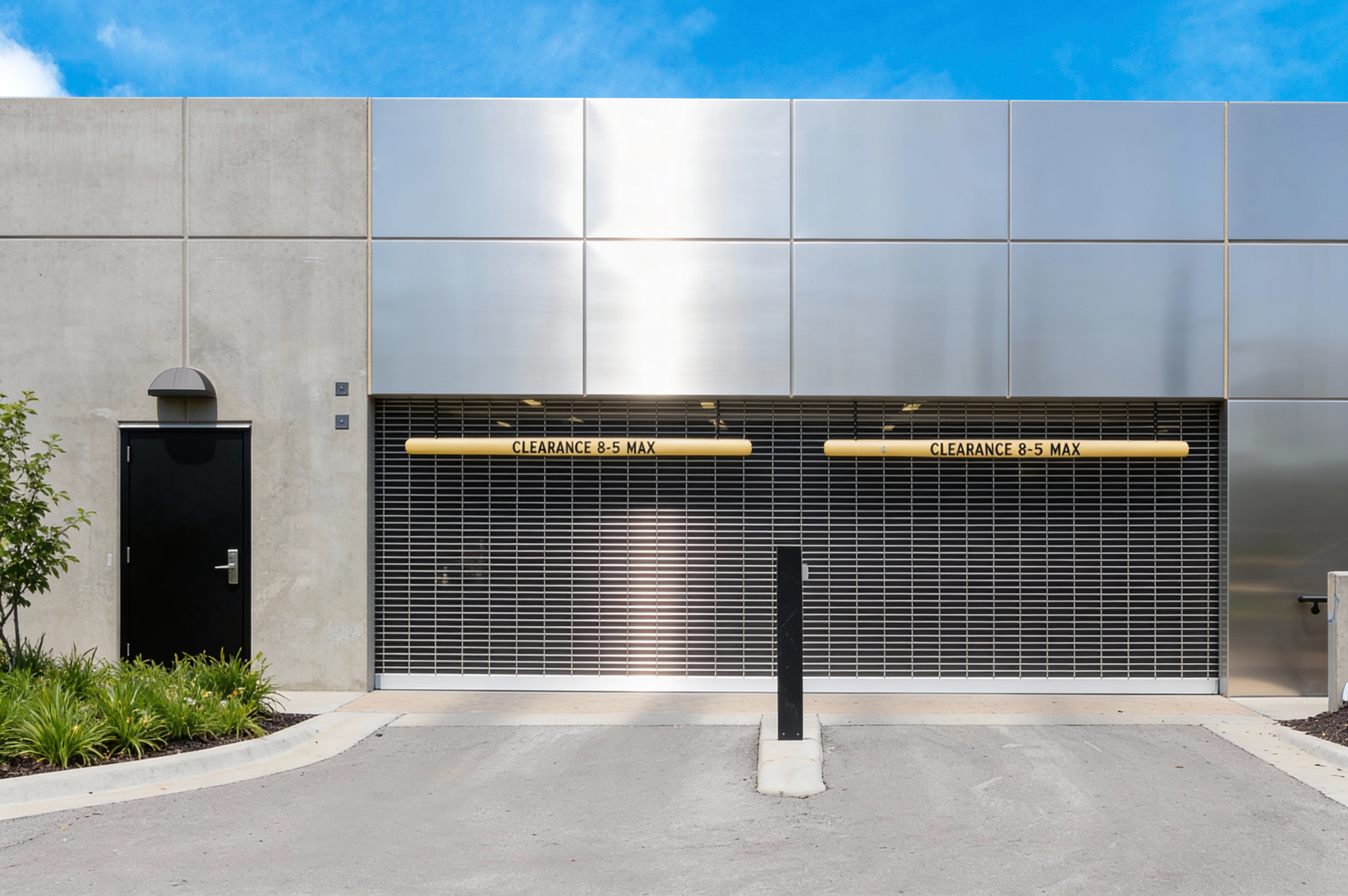

The TruCycle Grille is the trusted choice for parking facilities that require durable ventilation and for retail spaces needing a secure, continuous-use grille. Offered in both brick and straight curtain patterns, its performance is guaranteed with our industry-leading 3-year/300,000-cycle warranty.

Need A Dealer Need Design Help

Usage

These grille are designed to handle heavy, continuous traffic.

To ensure consistent, cycle-to-cycle performance, every TruCycle Grille includes a powerful 3-year or 300,000-cycle warranty, whichever comes first.

Standard Materials & Finishes

The TruCycle Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:

Brick Pattern
Straight Pattern

Curtains can come in the following finishes:

Mill
Clear anodized
Medium bronze anodized
Dark bronze anodized
Black duranodic

Operation

The TruCycle Grille utilizes a direct drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your grille system and ensuring quiet operation. The operator system pairs with the APEX Core SmartController®, putting reliable performance diagnostics at your fingertips.

Sizes

Max Width: 30'4"
Max Height: 19'

For openings that fall outside of the standard construction, please contact us.

Videos

Safety & Protection

SafetyGard UL325 Approved Light Curtain

A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.

Learn More

Unique Features

APEX Core SmartController

This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.

Monitored Protection

Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.
