CrossingGard® Emergency Response GrilleSecurity Grilles
Model Number: ERG-IBC
Emergency Safety Gates

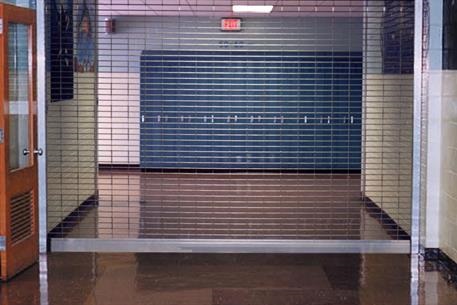

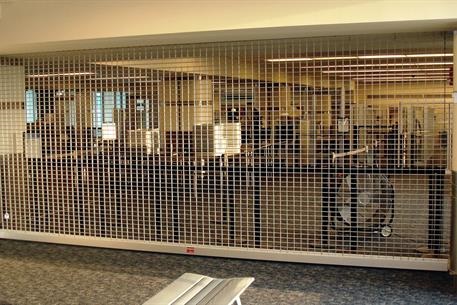

When emergencies happen, automatic emergency response gates can help save lives. Security grilles are a necessity in today’s world to help protect and secure different areas of a building, however you don’t want people trapped if an emergency occurs. As soon as an alarm is triggered, our CrossingGard safety gates immediately coil into a full open position without any electrical requirements. Providing instant alternate means of egress could mean the difference in prevent tragedies. Once the emergency event is cleared, the overhead safety gate system can resume to their normal security grille protection with the push of a button.
Our emergency response gate system does not mean lowered security. Many facilities, such as schools, need to protect sections of the building after normal hours while other parts, like sporting arenas and gymnasiums may have longer access hours. Rolling security gates are a perfect solution to block access to other parts of the building. Our emergency safety gates allow instant optional means of exit or egress from the building when the need arises. Our safety gates still offer all the rugged durability and low maintenance all of our security grilles offer while providing visibility and air flow. Manual locking or unlocking is not required and the automatic opening feature does make the roll down security gate less secure. When any type of forced opening is attempted, the Link AutoLock automatically secures the closed security grille, preventing manual forced opening. The Link AutoLock remains disengaged during normal and emergency operation.
When you need all the advanced features of Cookson’s security grilles with the means to instantly open them in case of an emergency, our CrossingGard emergency safety gate system is the perfect solution.
Technical Detail Information:
CrossingGard Grille Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance
International Building Code Compliance
The following items must be installed as indicated for CrossingGard grilles to meet IBC code requirements:
- Fail-safe emergency response opening capability
- Our unique AutoLock mechanism
- Emergency exit push-button opening device
- Additional "push to exit" signage
Additionally, activation by the emergency exit push-button station can be configured to activate a local horn and strobe alarm. Consult Cornell if other details regarding appropriate applications are required.
- Standard construction up to 24’ wide, 20’ high
- For openings that fall outside of the standard construction, please contact us.
Standard Materials and Finishes

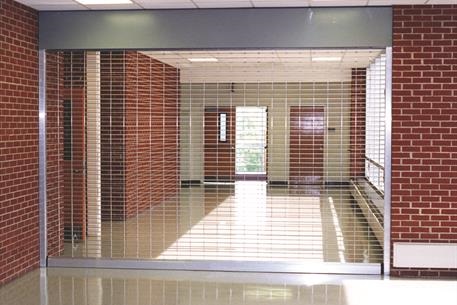

The CrossingGard Rolling Grille has an open curtain, which allows air circulation. The curtain is formed with a series of horizontal rods 5/16" in diameter, with a vertical separation of 2” between.
Rods are available in the following materials:
- Aluminum, with mill, clear or color anodized finish
- 300 series stainless steel
- Solid galvanized steel
For additional finish options, please contact us.
The AlarmGard motor operator is supplied as standard to provide daily operation along with fail-safe automatic emergency opening capabilities without the use of batteries or a back-up power source. Operator can be recessed above a ceiling, as no mechanical resetting is required to resume normal operation.
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More
Powder Coating Grilles
Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.Learn More
Trim PackageIn applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.
LED Visual Light KitThe LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
Magic SwitchA touchless activation device designed to open and close doors with the wave of a hand. It's compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. The Magic Switch is easy to retrofit in an existing application and features a clean, stainless steel face plate.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Sloping or Irregular OpeningsOur special bottom bar designs can address these conditions.
Vibration IsolatorVibration Isolators effectively reduce the amount of vibration* caused by operation of doors and grilles.
*Vibration was reduced by14%+ on doors and grilles with vibration isolators installed compared to doors and grilles without the system
SmartSync Wireless Safety Edge Kit
The Smartsync Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
