Fire Rated Coiling Doors | UL Listed Roll Up Fire Doors

Name: UL Listed Roll Up Fire Door
Brand: Cookson Door

Fire Doors

Model Number: ERD10, ERD11, ERD20 and ERD21

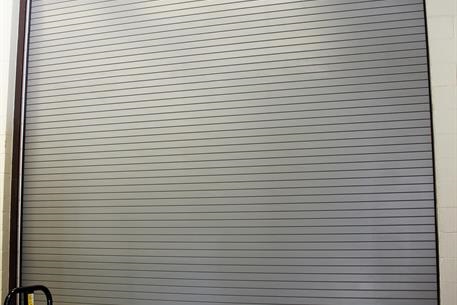

Roll Up Fire Resistant Door Systems

In the event of a fire, our roll up fire doors are engineered to save lives and protect property by compartmentalizing building areas and isolating the incident. In addition to preventing the migration of fire, they also provide security and access control in wall openings that are not a required means of egress.

These fire rated roll up doors provide the opportunity for simple, reliable, fail safe activation that seals the openings at the first hint of a fire.

Fire doors are manufactured to your specifications to seal these openings where rated doors are required by building codes when insurance fire safety standards mandates must be met.

SmokeShield® for Fire Rated Coiling Doors

Our fire rated rolling doors are also available with an optional SmokeShield® package. This package adds smoke and draft control which is listed to UL1784, assuring that smoke is compartmentalized with the fire and not spread throughout the facility.

Our rolling fire door is UL listed, Factory Mutual Approved and listed with the California Office of the State Fire Marshall. It is also listed for fire protection ratings of 45 minute, 90 minute, 3 and 4 hours.

Technical Detail Information:

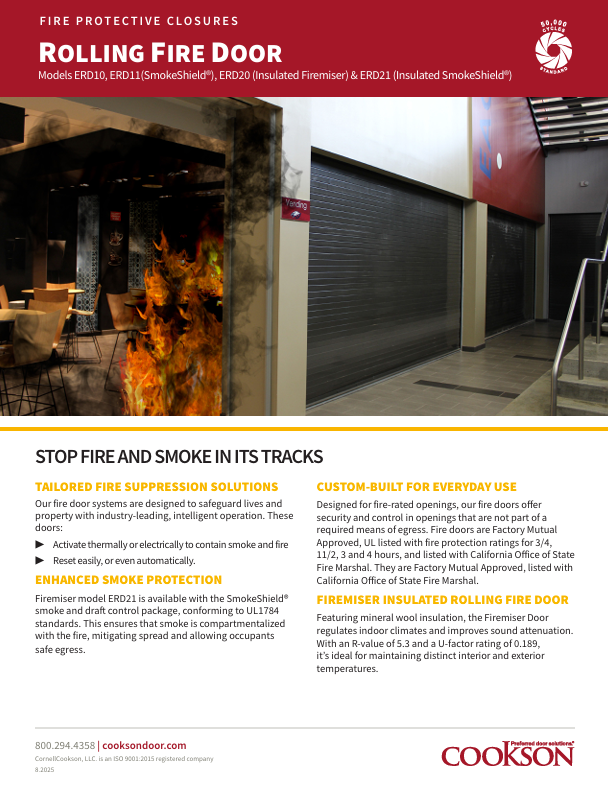

Rolling Fire Door Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance

Sizes

A standard UL labeled fire door is available up to 13.5' wide by 12' high.
An oversized UL labeled fire door is available up to 60' wide by 40' high or 1,200 sq. ft.

For openings that fall outside of the standard construction, please contact us

Standard Materials and Finishes

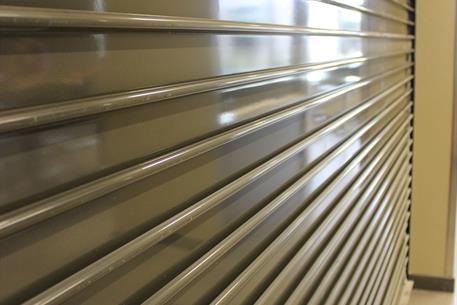

Fire Door curtains are available in:
• 22, 20 and 18 gauge galvanized steel:
‒ Exclusive GalvaNex™ finish in Gray, Tan, White or Brown provided as standard

• 20 gauge 300 series stainless steel:
‒ #4 finish

Stamped steel or cast iron endlocks are provided per UL procedure.

Click here for additional material and finishes options and information.

Finish/gauge availability varies. Contact us for detailed finish/gauge availability.

Mounting Options

Fire doors can be installed face of wall or between jambs on an interior or exterior wall. Acceptable wall types include masonry, structural steel jambs and drywall construction with structural steel or wood studs.

Testimonials

Check Out How We've Helped These Clients With Custom Closure Solutions:

"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."

MARK WORMAN, OWNER OF GRAVEYARD CARZ

"Warehouse security is vital to us as a brewery, and to our employees, but it is also important to TTB (Alcohol and Tobacco Tax and Trade Bureau). Having the protection of a coiling steel product completely eliminates that concern. We are really happy with the way the 1024 performs. It is very quiet and the fact that safety features like the light curtain are standard gives us peace of mind knowing that the door system is clearly designed to protect our people and equipment."

RICK DEBAR, TECHNICAL MANAGER AT OMMEGANG BREWERY

"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."

DONALD FOX, FOX THEATERS

View Our Project Gallery for More Case Studies

Sensing Edge

Sensing Edge - Entrapment Protection Device

Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.

Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.

To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.

Fire Specific Options

Battery Back Up Devices

Available for motor, chain and crank operators, these devices prevent fire doors from closing from a power failure.

Learn More

Firefly & Firefly BB Release Device

Optional device that ties in to a building alarm system and closes a Simple-Test fire door upon alarm activation, rather than by melting its fusible link.

Learn More

SmokeShield® Seal Package

Often required by local building codes, our smoke seal adds smoke and draft control.

Learn More

Testing Stations

Safely and conveniently test and reset the functionality of the fire door at floor level. May be flush or recess mounted.

Learn More

Aesthetics

Omni Powder Coat Finish

Our environmentally friendly Omni Powder Coat helps you to match your rolling steel door to select Clopay sectional doors.

Omni Powder Coat is available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

Learn More

SpectraShield™ Powder Coat Finish

Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.

Learn More

Hood and Operator Covers

Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.

Learn More

Finishes Colors & Options

Finishes Colors and Options

Finishes Colors & Options Sheet
AtmoShield® Color Options
Powder Coat RAL Color Chart

Performance Upgrades

High Cycle Springs

Heavy duty springs manufactured to withstand cycles of 100,000.

Learn More

Seismic Performance Validation

We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Learn More

Safety and Protection

Entrapment Protection Devices

Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.

Learn More

Guide-Mounted Interlocks

An electrical cutout switch to prevent motor operation if locking device is not first disengaged.

Learn More

Rolling Door Protector (RDP)

The RDP eliminates costly fork truck damage to coiling doors by creating a physical barrier at the top of the door that absorbs impacts.

Learn More

Static Wind Load

Can be configured to withstand the full range of specific wind load requirements including missile impact ratings.

Learn More

Unique Design Solutions

Sloping or Irregular Openings

Our special bottom bar designs can address these conditions.

Learn More

SmartSync Wireless Safety Edge Kit

SmartSync™ Wireless Safety Edge Kit & Wireless Remote Control

The Smartsync™ Safety Edge Kit is an upgrade for our existing Safety Edge. This allows for wireless communication between the transmitter and the receiver, eliminating the coiling cord in the door opening. Learn more.

The Smartsync™ Wireless Remote allows wireless control of your door or grille. This heavy-duty remote comes equipped with an anti-shock design and is compatible with most motor-operated doors, grilles or counter doors.*
*Not compatible with NEMA 7/9 operators
Learn more.

Specification Sheets

Fire Door Specification

BIM Objects

Drawing Generator

Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
Fire Door Drawing Generator
