EntryDefender® Door | Defender SeriesDefender Series
Model Number: PED0101 (05,15, 60)
High Security Door

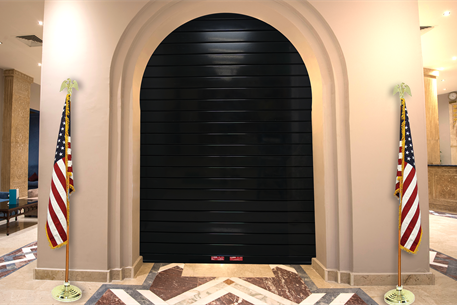

The platinum award winning EntryDefender® Door is manufactured to protect official government buildings, medical and legal marijuana dispensaries, manufacturing facilities, and other sensitive designs from break-in for 5, 15 and 60 minutes in accordance with the U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended). The EntryDefender is the only roll up door in the country that allows experts to customize design in wide doorways without jeopardizing safety and complies with regulations.
It may look like a common roll up door from the outside, but the sturdy steel curtain features interlocking slats that contract when in the closed position - creating an even surface that diminishes potential pry points. As the assault continues, the interlocking slats combine together further to avoid division and make the door even more stable. It also features an enhanced bottom bar and hidden locking system that further holds the door closed.
American Security Today Magazine awarded the extraordinary EntryDefender Door with the Platinum Award for Best Critical Infrastructure Protection Solution at the 2019 Astors Awards.
|Model #||Resistance Rating|
The EntryDefender Door meets the U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended) for a 5, 15 and 60 minute attack.

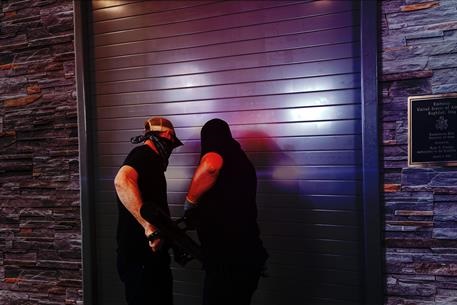

The government standard for forced entry (CODE) was designed for attacks that escalate – not planned attacks. That’s why the testing required for this code requires six men between the ages of 18 and 24 that weigh more than 160 but less than 250 pounds to try and pass a rigid rectangular shape measuring 12” x 12” x 8” or a rigid 12” x 12” cylinder through the door using hand tools such as battering rams, axes, crowbars, and the like.
The maximum size available will vary slightly based on the wall construction.
If the wall construction is steel, the maximum size is 13’ 11 1/4" wide by 16’ high.
If the wall construction is concrete, the maximum size is 13' 8 3/4" wide by 16' high.
The EntryDefender Door is designed to operate to 20,000 cycles (lifetime) as standard, but can also be customized to handle additional cycles if desired.
Standard Material & Finishes
The standard materials and finishes for EntryDefender are:
Curtain – 12 gauge 4” flat steel slat with SpectraShield® powder coat in gray.
Guides – Steel with powder coating to match the curtain.
Bottom Bar – 12 gauge 4” face steel bottom bar with powder coat to match the curtain.
The EntryDefender Door features the SG motor operator as standard. It is UL-325 listed with a chain and sprocket drive. It also includes an interlock to prevent operation while locks are engaged.
Static Wind Load
The EntryDefender door is designed for a static wind load of up to 125 psf.
Check Out How We've Helped These Clients With Custom Closure Solutions:
"CornellCookson had installed a rolling door for us in our old building. We used it all the time and it’s held up really well over the years. Calling them in again made perfect sense. We are thrilled with how this door looks. The level of detail that’s been captured so clearly on this large door is incredible. It’s exceeded our expectations by far and will definitely do its job as a focal point in our new building."
MARK WORMAN, OWNER OF GRAVEYARD CARZ
"Warehouse security is vital to us as a brewery, and to our employees, but it is also important to TTB (Alcohol and Tobacco Tax and Trade Bureau). Having the protection of a coiling steel product completely eliminates that concern. We are really happy with the way the 1024 performs. It is very quiet and the fact that safety features like the light curtain are standard gives us peace of mind knowing that the door system is clearly designed to protect our people and equipment."
RICK DEBAR, TECHNICAL MANAGER AT OMMEGANG BREWERY
"The SteelWeave Metal Mesh Grille was the perfect solution to meet all of our needs. It complimented the design of the bar and lobby while adding some elegance. We could not be happier with the look and function of our CornellCookson SteelWeave Metal Mesh Grille and custom sliding panel."
DONALD FOX, FOX THEATERS
Sensing Edge - Entrapment Protection Device
Designed with a flexible black rubber TPE material, our new sensing edge has two fins that conform to variations in the floor on both the interior and exterior of your door or grille ensuring a secure seal without requiring you to overset the bottom door limit. The sensing edge is easy to clean and remains free from rust and dirt stains, maintaining a fresh uniform appearance. With flexible 1" sealing fins, our sensing edges provide maximum protection while withstanding the elements.
Edges are tested and listed to UL 10B as a component of the rolling steel fire door assembly.
To determine the best entrapment device for your application, check out our Entrapment Device Protection Overview document.
AtmoShield™ Powder CoatingTextured powder coat finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added product protection.
SpectraShield™ Powder Coat Finish
Polyester finish in more than 180 colors for durability, aesthetics, superior finish life and cost effectiveness.Learn More
LED Light Kit
The LED Light Kit provides a high-visible status indication for overhead doors and grilles. Designed for challenging environments like fire and emergency services, parking garages, and warehouses, the effective LED light strips limit downtime, maintenance, and repair costs.
