Heavy Duty 5015 Security GrilleSecurity Grilles
Model Number: 5015

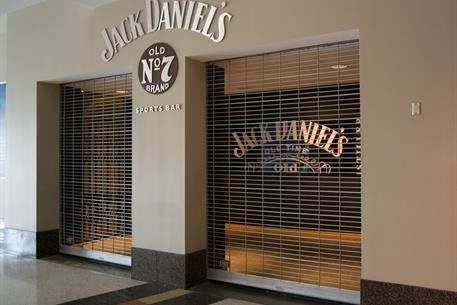

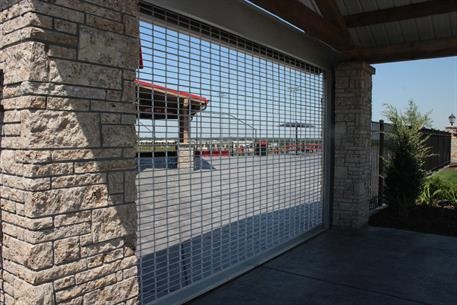

Heavy Duty Security GrilleThe 5015 Rolling Grille is built for the long haul. The rugged grille features solid rods that are spaced 33% closer than standard grille construction. And, the links are 50% heavier with tube spacers on each and every rod. The 5015 provides robust security without blocking vision or airflow.
The tube spacers placed on every rod not only ensure the utmost security and durability, they also allow for the 5015 grille curtain to be powder coated - improving aesthetics while maintaining the grille's rugged security.
The grilles are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50K cycles for the lifetime of the grille. Dependent on curtain configuration and spring selection.
This grille is also available in 100K, high cycle construction for more than 20 cycles per day.
If your requirements call for increased speed (up to 24 inches per second), more than 50 cycles per day, or 300,000 cycles lifetime, consider our line of High Performance products.
Materials and Finishes
- Aluminum in mill, clear, or color anodized
- Stainless steel - 300 series in #4 finish
- SpectraShield Powder Coating in more than 180 colors
Chain Diverter for MGH Operators
This option moves the auxiliary chain out of the clear opening and to the side of the door – enabling free movement through the door and making a chain bag unnecessary.
Grille curtain can be mounted in a fixed frame assembly. It can be installed separately, or installed near a rolling grille curtain to complement the aesthetics. Often used in parking garages.
Hood and Operator Covers
Metal cover to protect the coil or operator from exterior weather, debris or to meet OSHA or UL 325 safety requirements.Learn More
Powder Coating - Grilles
Powder coat finish in more than 180 colors is available on perimeter components such as the aluminum bottom bar, hoods, wall angles, tubes and fascia. This finish is not available on the grille curtain.Learn More
Trim PackageIn applications where exterior aesthetics are important, such as hotels, condominiums, convention centers and parking garages, the addition of a trim package can cover unsightly hardware and contribute to the building's architecture.
Grille High Cycle ConstructionFor grilles that will cycle more than 5 times per day, such as parking garages and sally port openings, we recommend Model ESG12 brick pattern configuration. Alternative high cycle options include the Extreme SentryGate® grille and the Extreme 324 Grille.
High Cycle SpringsHeavy duty springs manufactured to withstand cycles of 100,000.
Seismic Performance Validation
We can provide project specific seismic calculations for all coiling doors that are mounted Face of Wall or Between Jambs to steel or masonry. Seismic performance validation is per ASCE 7-05.
Entrapment Protection Devices
Entrapment protection devices ensure that a motorized door or grille will not close on an object. If an object enters path of closure, the entrapment protection device will stop the door or grille from closing and return it to the fully open position.
Guide-Mounted InterlocksAn electrical cutout switch to prevent motor operation if locking device is not first disengaged.
A wide variety of locking options are available to meet your security needs.
Manual Release System
If egress is required on a motorized grille, a wall mounted pull handle disengages the motor to allow the grill to partially open.
Motor Mounted Interlock
An overload sensing device that prevents damage if motor operation is attempted when the door or grille is locked. Field wired guide mounted interlocks are no longer necessary.
Combine two different slat profiles in the same curtain. Typically, a standard slat is combined with a perforated slat or even rolling grille for ventilation and security.
Countertops are available for a complete counter shutter closure solution, and can be UL rated.Learn More
MullionsThere are multiple mullion options - corner, fixed and removable.
Sloping or Irregular OpeningsOur special bottom bar designs can address these conditions.
Superimposed DoorsCombine two different curtains on the same opening. Typically, an insulated door is used in conjunction with an open design rolling grille to provide ventilation. When extreme weather or sound resistance is desired, we can provide superimposed/double insulated curtain assemblies.
