Underwriters Laboratories (UL) standards are voluntary standards created to establish minimum requirements to evaluate products in the interest of public safety. UL is a not-for-profit organization that strives to “promote safe, secure and sustainable living and working environments for people by the application of science, hazard-based safety engineering and data acumen.”
With over 1,500 UL standards, there’s a lot of information to comb through. For the purposes of this blog, we’ll be focusing on one of the standards that makes a huge impact on the commercial door industry: UL 325.
Although the UL 325 standard applies to electrical and pneumatic door and gate systems, and door, drapery, gate, louver, window and turnstile operators, together with controls and accessories for use with such operators, each system has unique characteristics. It was put in place to prevent entrapment accidents and reduce risk. We will review overhead doors specifically below.
Please note the UL 325 standard is not applicable to any fire door in alarm, per NFPA 80.
You first want to consider distance. If your operator is closer than eight feet to the rolling door, all pinch points must be covered. Typically, the operator’s manufacturer will supply covers for any exposed moving parts.
Another factor to consider with UL 325 compliance is how the automated operator closes your door or gate. When installing an operator for UL 325 compliance, you have a few options:
Require that the operator use constant pressure to close your door or grille. This means your closure of choice must be visually monitored by the person operating the door with the control station through full closure to prevent entrapment.

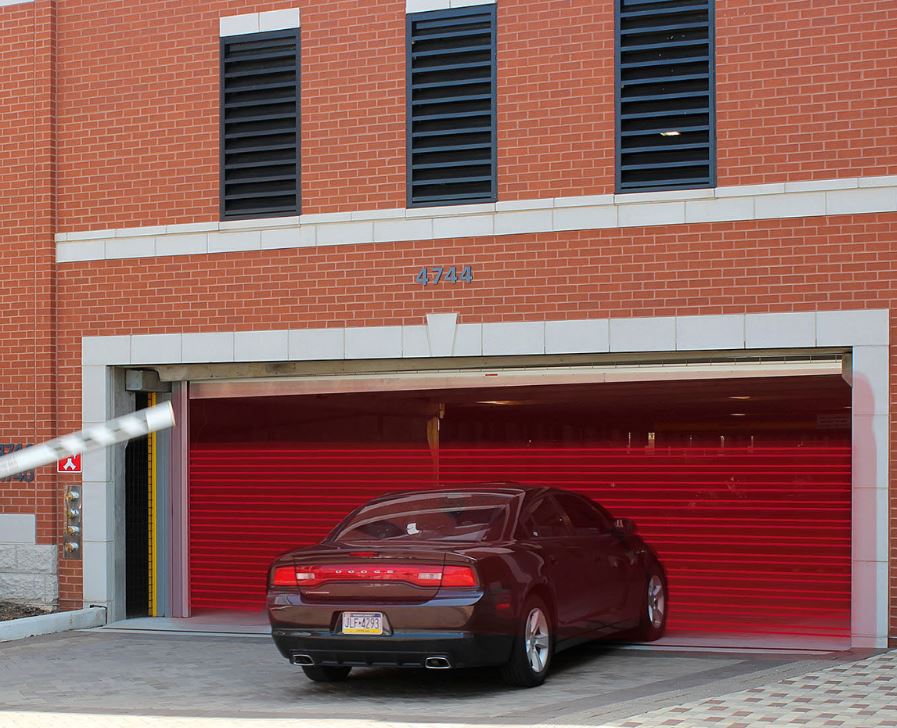

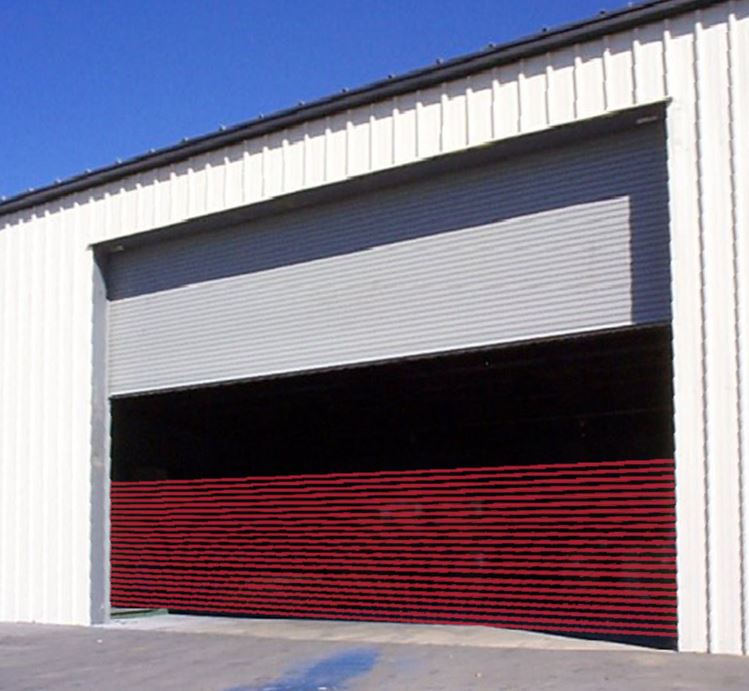

An operator that uses a sensing device such as sensing edges, photo eyes, and light curtains. Sensing edges are activated when the door’s bottom bar touches any object in the door’s closing path, and thus require contact to work properly. Light curtains and photo eyes do not require contact for door cycling. You can learn more about all three in our "Non Contact Vs. Contact Safety Devices for Rolling Applications" blog here.
The UL 325 standard gets even more specific with your closure’s cycling devices, depending on their levels of entrapment protection. A primary entrapment protection device controls the closure with the push of a button. Examples of these include photo eyes, wireless sensing edges, and ELR electric sensing edges. Secondary entrapment devices can be used in conjunction with a set of primary entrapment photo eyes or with a constant pressure to close operation. Examples of secondary entrapment protection devices include non-monitored photo eyes, pneumatic sensing edges, and electric sensing edges with or without wireless edge kits.
See below for more details on entrapment protection devices.
UL 325 compliance can make a significant difference for everyone’s safety and reputation. This standard was created to improve overall personal safety when in the vicinity of large, operable objects.
Whether the operator and closure are in residential or industrial areas, safety should be everyone’s top priority. Meeting UL 325 compliance is also a reputation and liability saver. From designers and specifiers to dealers and technicians, along with end users, everyone can rest easy knowing the closures and operators they choose can help save lives by following UL 325.
