GlideGard™ Side Folding Grilles

Side Folding Grilles

Model Number: ESG32

Side Folding Security Grilles

A heavier-duty side folding grille, GlideGard™ provides enhanced security in applications where more robust supporting structures are available. Our vandalism-resistant design is useful for use in applications such as food courts, schools, sports complexes and public transit.

Technical Detail Information:
Feature Sheet

I Have a Question

Design Support

I Need a Local Rep

Find A Dealer

Overview

Side folding grilles require less headroom clearance than rolling grilles. The robust design of GlideGard™ features individual panels that interlock by full height hinge members. Fully concealed hinge rods protect the grille from vandalism.

GlideGard Standard Features:

Clear anodized rods, links, post material and hinged top and bottom panels
PVC tube spacers to match
12" link spacing standard
9", 6" or 3" spacing optional
Hook bolt locking with cylinders both sides standard, other locking optional
Emergency egress option – bi-part or full 3' x 7' egress door within the curtain
Fully anodized version optional

Track Information

Extruded heavy-duty aluminum section 1 3/4" high by 1 5/16" wide track mounts to the overhead structure to support the entire unit. No floor track is required. Track required for curved openings has a standard 14" radius: 90°, 120°, 135° and 150° curves are standard.

Of note, custom radius angles are also offered, please contact us. Multiple connecting sections can be incorporated. Bi-Part opening is also available.

Sizes

Standard construction up to a maximum height of 14' 0”
Maximum recommended width of a single unit section is 30’0” – larger openings would require a multi-section curtain
Minimum width is 2’0”, minimum height is 4’0”
For openings that fall outside of the standard construction, please contact us

Usage

Constructed for manual push/pull operation with a daily use limit of up to 20 cycles per day.

Grille Curtain Construction

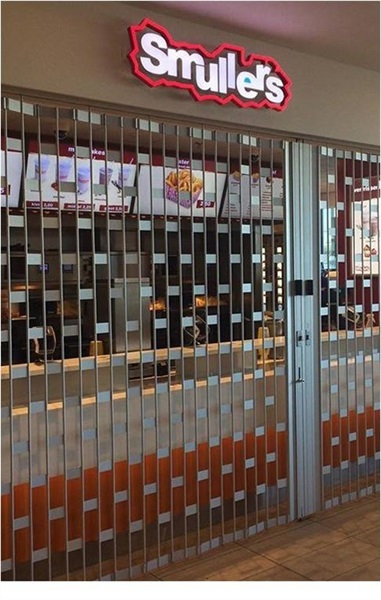

GlideGard Brick

GlideGard Brick Option

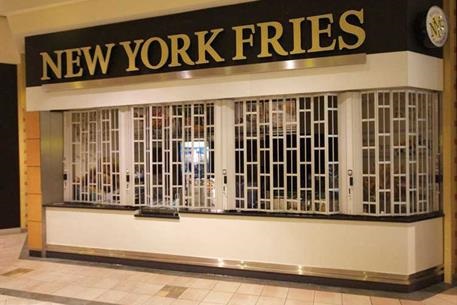

GlideGard Straight

GlideGard Straight Option

Unique Design Solutions

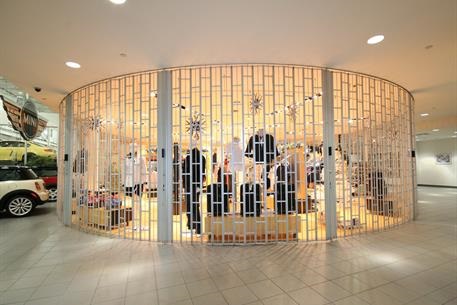

Curved Track Construction

For side folding doors and grilles, installing a curved overhead track can help avoid design obstacles in the ceiling space.

Learn More

Grille Single Slide or Bi Parting Construction

This side folding grille can be designed to close at the center of the room in divided sections or extend fully from one wall to the other.

Learn More

Multiple Height Units

Available for openings that different heights in the same area.

Learn More

Pocket Door

Available for side closing products up to 12 feet high, this heavy duty 12 gauge steel pocket door and frame assembly neatly closes off the pocket area of a stored partition.

Learn More

Specification Sheets

GlideGard Side Folding Grille Specification

Codes & Listings

ISO 9001:2008
Buy America Compliance
LEED® Compliance

See Codes and Listings page for detailed information.

Side Folding Grille Feature Sheet
