Electronic AutoLock for High Performance GrillesHigh Performance
High Performance Automated Locking

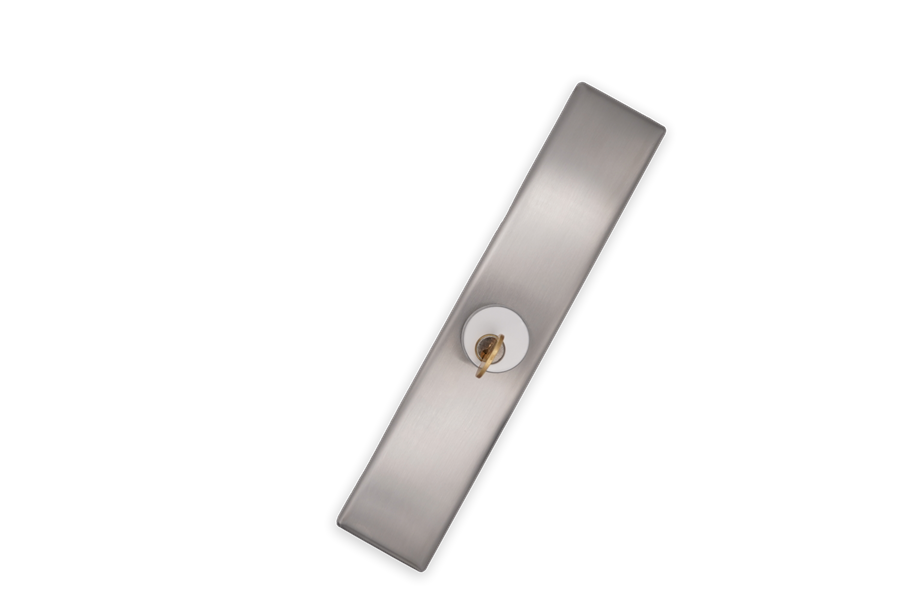

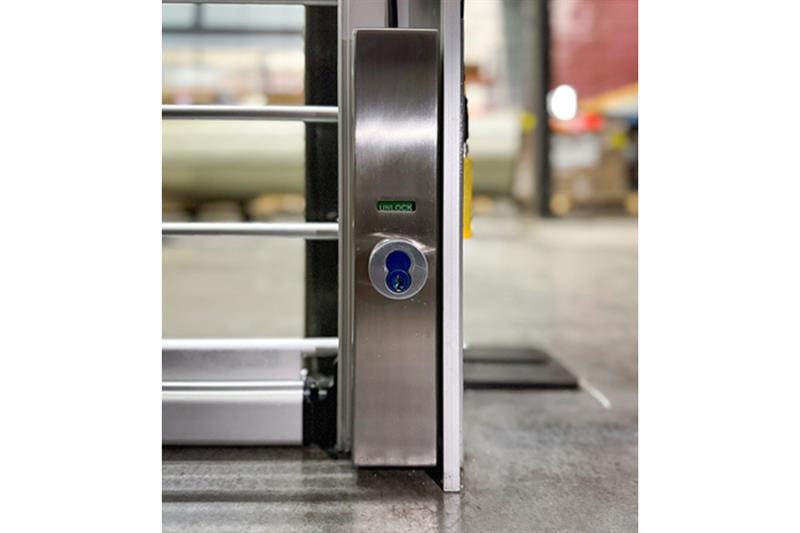

The Patent Pending Electronic AutoLock is the perfect addition to the Extreme MIcroCoil Grille - 500 cycles and the Extreme 300 Series Grille. It provides extra security without compromising the aesthetics, low headroom or high performance qualities of the grille. It can be used on new or existing units. The Electronic Autolocks work by automatically engaging the cylinder lock, which secures the grille in place when in the closed position. The Electronic AutoLock increases the overall security and strength of any Extreme High Performance Grilles by increasing lift resistance.
The Electronic AutoLock comes in standard or best cylinder tapering locking options – both are compact with less than a 1” projection past the guide.
If there is a power outage, the locks will remain locked when the grille is in a closed position. This can be overturned with a key.
The Electronic AutoLock increases the overall security and strength of the Extreme MicroCoil Grille and 300 Series Grille by increasing lift resistance. Our high performance grilles in combination with the AutoLock system were tested for lift resistance with two assailants. The locks were able to withstand up to 1200 pounds of force on grilles with Aluminum guides and up to 940 pounds of force on Stainless Steel guides without the bottom bar lifting over the lock.
Electronic AutoLock Options Sheet
The Electronic AutoLocks are available as an option on the MircroCoil Grille - 500 cycles and the Extreme 300 Series Grille. It can also be retrofit to upgrade an existing grille in the field.
To keep the aesthetic appeal, all options are compact, with less than 1" of projection past the guide.
Standard Materials & Finishes
Designed with a durable stainless steel cover and housing with a solenoid plate within the housing.
The Patent Pending Electronic Autolock is available in standard and best cylinder tapered.
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
