Fabric Smoke DoorFabric Smoke Door
Model Number: ERF20
SmokeShield® Fabric Smoke and Fire is a first of its kind fire protective curtain. It pulls double duty for use in both new construction and retrofit projects, offering high quality life safety protection with a UL10D three-hour fire protection rating and a UL1784 smoke and air infiltration listing.

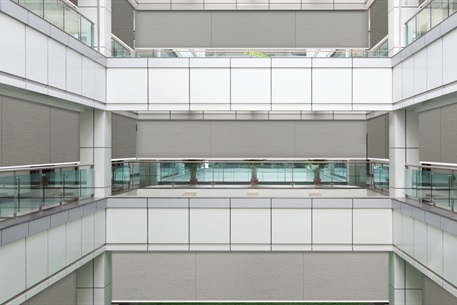

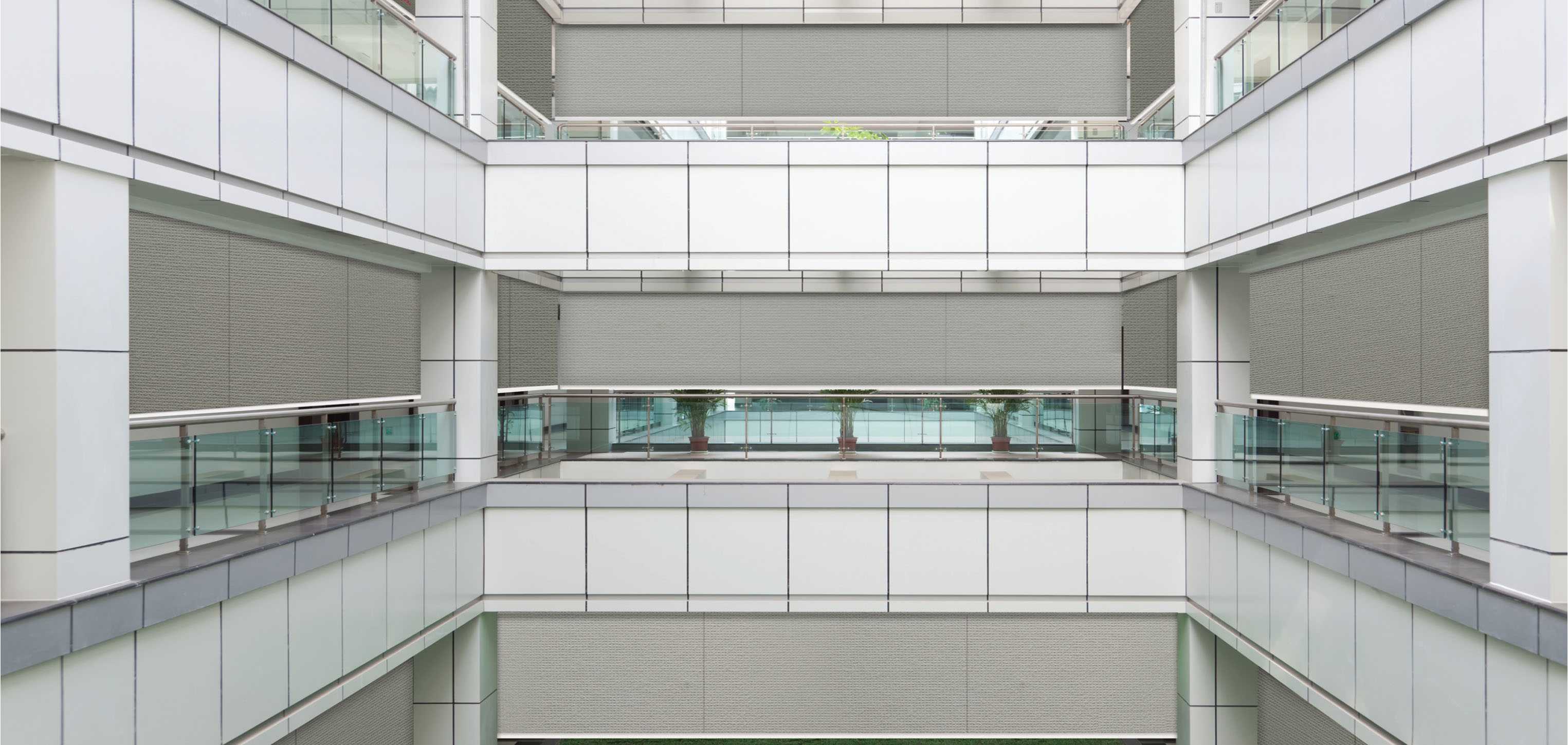

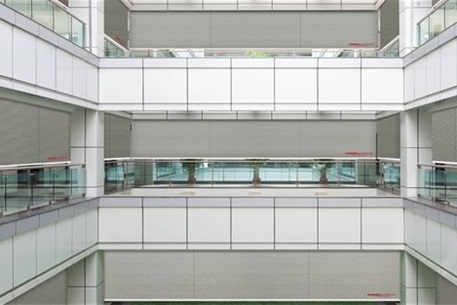

SmokeShield is engineered to enclose atriums, corridors, or other openings in fire-and smoke-barrier walls. Its patented GuideLock™ technology positively seals the curtain within its guide channels, cutting smoke and fire off immediately after connected fire systems sense either.
This fire-rated door is easily recessed into the jamb and lends itself well to concealment in wood, masonry, sheetrock, or other fascia materials.
Contact us to learn more about SmokeShield and how it can benefit you and your atrium, corridor, or other opening in fire- and smoke-barrier walls.
Technical Detail Information:

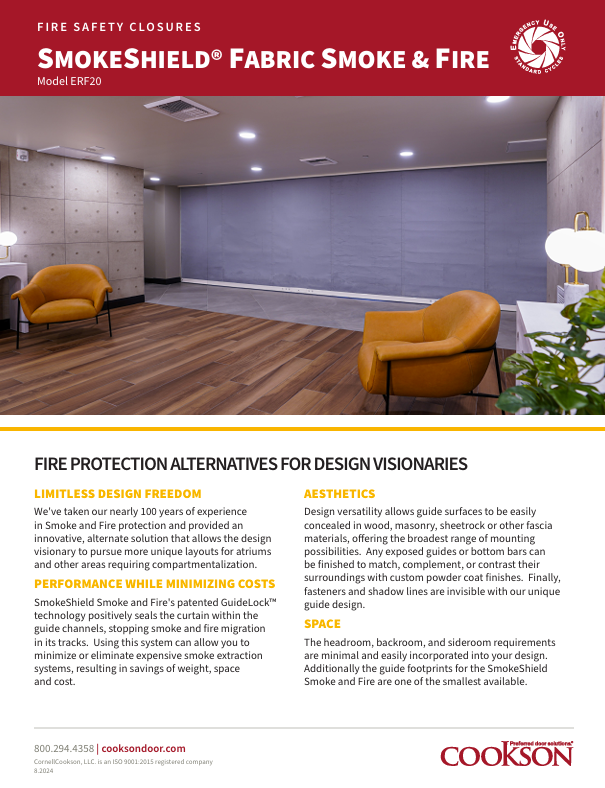

SmokeShield Fabric Smoke and Fire Brochure & Details Sheet Generate a Custom Drawing Architectural Assistance
This product is intended for emergency use only. The on board battery back-up is capable of cycling the system in the event of a power loss.
Max Opening Width: 22'
SmokeShield Smoke and Fire deploys upon notification by the fire alarm control panel or local smoke detectors and is reopened with the wall-mounted switch or set to auto-open.
Finishes - SmokeShield Smoke & Fire Fabric
Custom powder coat available.
Wire Directly - SmokeShield Smoke & Fire Fabric
This option allows the SmokeShield Smoke & Fire Fabric enclosure to be wired directly into an emergency back-up power source.
Technical Data Sheets
Need to see clearances and mounting details? Enter your opening dimensions into our Drawing Generator, and get custom generated drawings of your door with all the details.
SmokeShield® Fabric Smoke and Fire Drawing Generator
Codes & Listings
- ISO 9001:2008
- Buy America Compliance
- LEED® Compliance
