GalvaNex™ Finish

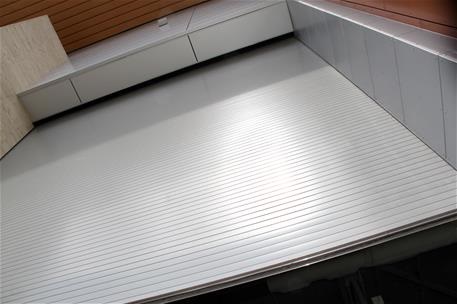

Available for Service Doors, Insulated Doors, Fire Doors and Insulated Fire Doors, Counter Doors and Counter Fire Doors and even Extreme Performance 1024 Doors, GalvaNex is our exclusive finish provided as standard on steel curtains and hoods.

This cost effective finish includes an ASTM A653 galvanized base coat. The steel is treated with a dual process rinsing agent in preparation for a two-step baked-on polyester finish coat. The two coat system consists of a primer that is 0.15 mils and a finish coat that is 0.70 mils for a total dry film thickness of 0.85 mils.

For a more durable finish, consider upgrading to our Ultra powder coat finish. It can be applied on top of GalvaNex finishes. Ultra is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.


Please Note: Due to inherent differences in physical powder vs. an electronic display, as well as differences in individual monitor calibration, these color representations can be used as a guideline only. When color is critical, contact Cookson for a physical, color accurate sample. Cookson is not responsible for discrepancies between the color representations shown and physical product finishes.

Download Finishes, Colors & Options Data Sheet

Standard GalvaNex Colors Available

GalvaNex with gray*

GalvaNex with tan*

GalvaNex with white*

GalvaNex with brown*

* Finish/Gauge availability varies by product.
Contact us for detailed Finish/Gauge availability.
