VISIONAIRE Straight Pattern Grille | Garage Doors & Grilles

Model ESG10

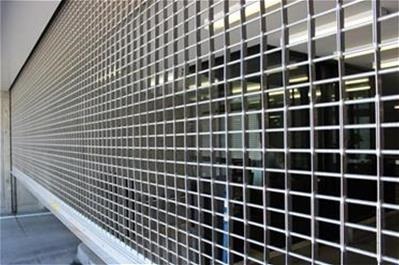

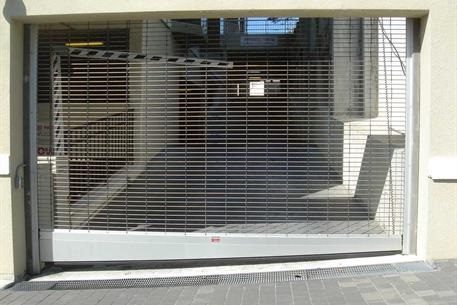

Open curtain design allows air circulation and full visual access of the area being protected.  Curtain is constructed with a series of horizontal rods 5/16" in diameter. Vertical O.C. separation between rods is 2". Vertical chains are formed of eyeletted aluminum or stainless steel on 9", 6", or 3" centers. End chains are held in place by double E-rings on horizontal rods on both sides of chain to retain curtain ends in guides.

Rods are available in:

  • Aluminum:
    • Mill finish
    • Clear anodized finish
    • Color anodized finish
  • Solid stainless steel - polished 300 series
  • Solid galvanized steel
